Cross-Format Search
Search 2D drawings, find 3D parts. And vice versa.
Search across 2D and 3D engineering archives with one geometry query. Use a technical drawing to find related drawings plus matching 3D CAD parts, or start with a 3D model and find the drawings behind it.
- 2D to 3Dsearch
- 3D to 2Dlookup
- Mixedarchive coverage
See It in Action
Watch how engineers find parts in seconds instead of hours
2D Drawing to 3D CAD Search
Start with a technical drawing and find matching 3D CAD parts from the same geometry, even when filenames or part numbers do not match.
3D CAD to 2D Drawing Lookup
Start with a 3D model and trace back to related drawings, documentation, and drawing history across the archive.
How It Works
Cross-format retrieval in three steps
Start from either side
Begin with a 2D drawing, PDF/DWG/DXF archive item, STEP model, native CAD file, image, or sketch. Cross-format search works from 2D to 3D and from 3D to 2D.
Scope2D drawings · 3D CAD files · Images & sketches
Map geometry across formats
GEOSeen maps 2D drawing features, dimensions, views, and linework to 3D model geometry so related files can be found even when metadata does not match.
ScopeFormat-agnostic encoding · Geometric mapping · Metadata fallback
Review mixed results

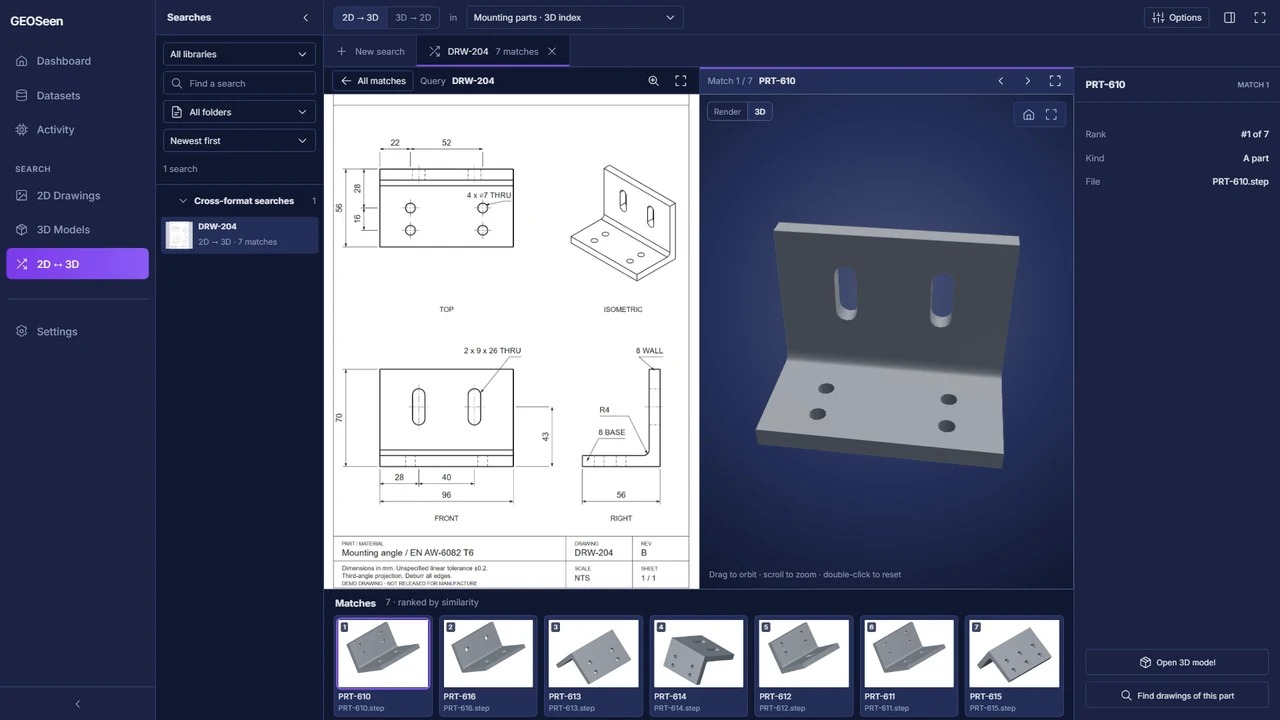

See similar 2D drawings, matching 3D CAD parts, related documentation, and part history in one ranked search experience.
Scope2D & 3D results · Similarity ranking · Part history lookup
Cross-Format Capabilities
Find 3D parts from 2D drawings and connect CAD models back to their technical drawings
2D to 3D
Drawing-Based 3D Search
Upload a 2D drawing and find matching 3D CAD models in your library. Connect legacy drawing archives to modern STEP and CAD assets.
3D to 2D
Model-Based Drawing Search
Start with a 3D model and find related 2D technical drawings, original documentation, manufacturing specs, and drawing history.
Unified Library
Single Search, All Formats
Search across mixed-format engineering archives with one query instead of checking drawing folders and CAD vaults separately.
Legacy Bridge
Connect Old and New
Bridge decades of PDF, DWG, DXF, and scanned drawings with current 3D CAD libraries using geometry as the common language.
