3D-to-2D Drawings

Open a 3D STEP model and get its dimensioned 2D manufacturing drawing: the views, sections, dimensions and title block, on a standard sheet.

Video transcript (English)

Try it yourself

Need a drawing from a single STEP file?

CAD2Drawing is Symge's self-serve web tool. Upload a STEP model and download its dimensioned drawing as PDF, DXF or SVG, with nothing to install.

Make a 2D drawing(opens cad2drawing.com)cad2drawing.com

How It Works

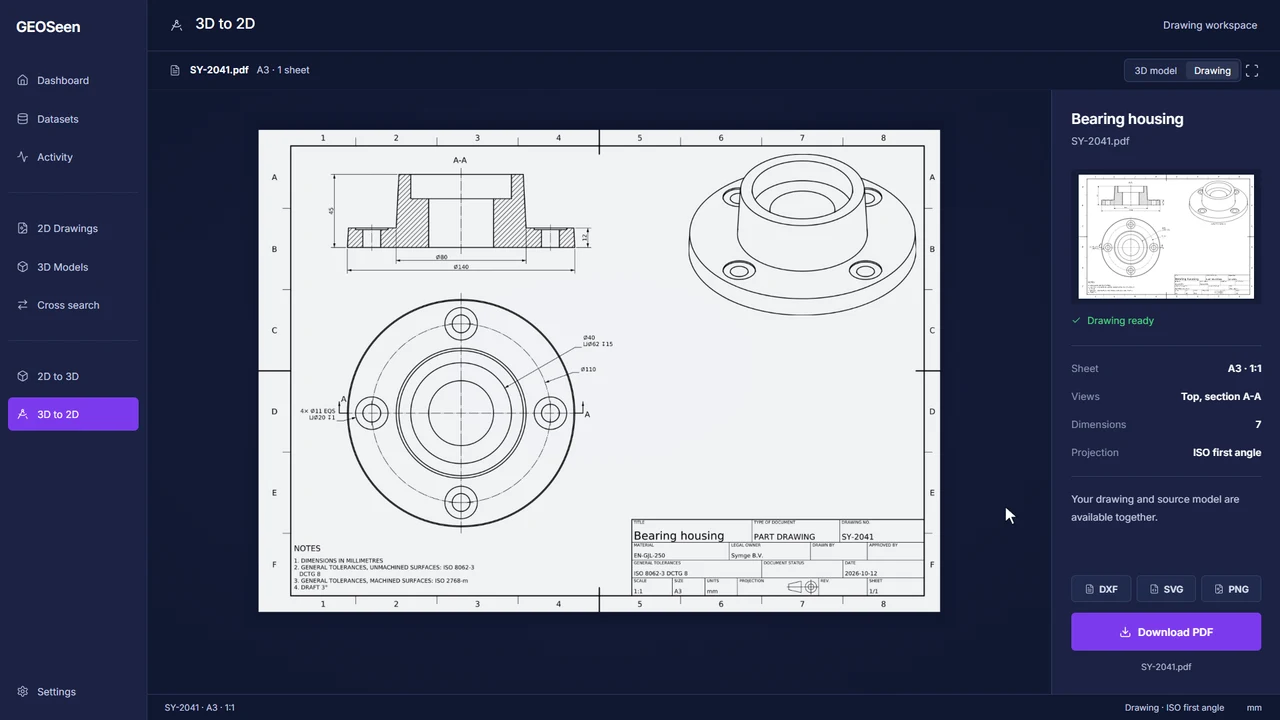

GEOSeen reads every face and feature of the model, chooses only the views the part needs and cuts a section where the inside matters. Each dimension is measured from the model itself, in ISO or ASME projection.

  1. Open a 3D model

    Choose a STEP model from your archive, or one part of an assembly, and say how the part is made and which standard to follow.

  2. Drawing generation

    The views, sections, hole callouts and dimensions are placed on a standard sheet at a standard scale, with the title block filled in.

  3. Review and export

    Check each dimension against the 3D model, then download the drawing as PDF, DXF, SVG or PNG.
